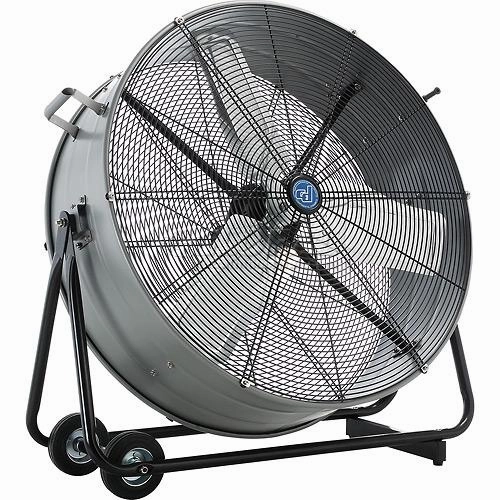

30 Inch Portable Tilt Drum Blower Fan - Direct Drive
TILT DRUM FANS
30 Inch Tilt Drum Fan Direct Drive
Item #:
T97246556
This CD industrial fan features a 2-speed PSC permanently lubricated single phase, 120V ball bearing type motor. The working ambient temperature range of this model is 0 - 40 degrees Celsius (32 - 104 degrees Fahrenheit). Blower fans have a complete metal housing with spiral wire safety guards and three (3) aluminum blades. Features a yellow 12'L SJT 3-conductor cord. 2 wheel cart base permits drum to tilt 360. Meets OSHA standards. UL and cUL Listed. 1 Year Limited Warranty. Horsepower rating based upon maximum speed/load.
- BRAND CD
- LENGTH INCHES 35-7/16
- DEPTH INCHES 12-13/32
- HEIGHT INCHES 36
- FAN DIAMETER INCHES 30
- CFM HIGH 9,800
- CFM LOW 9,100
- VOLTAGE 120
- HORSEPOWER 1/3
- DRIVE TYPE Direct Drive
- MOTOR TYPE Open Air Over
- MOUNT TYPE Portable
- TYPE Industrial
- SPEEDS 2
- AMPS 2.9
- ASSEMBLY Assembled
- BLADE QUANTITY 3
- APPROVAL UL, cUL Listed
- MODEL 246556
- COLOR FINISH Gray
- CONSTRUCTION Metal
- POWER CORD LENGTH FEET12
- MANUFACTURER'S PART NUMBER SFDC-750BT0
- BLADE TYPE Aluminum
